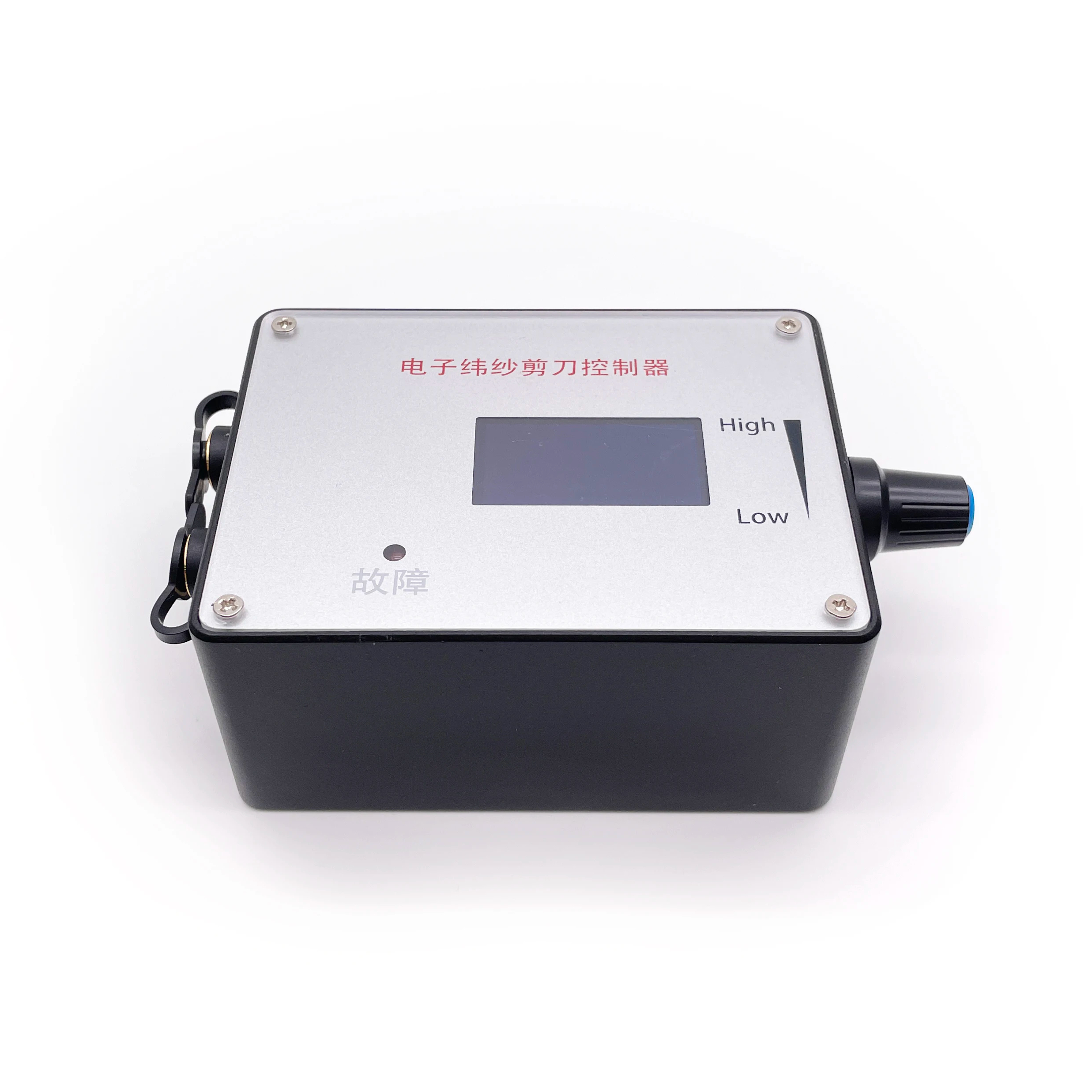

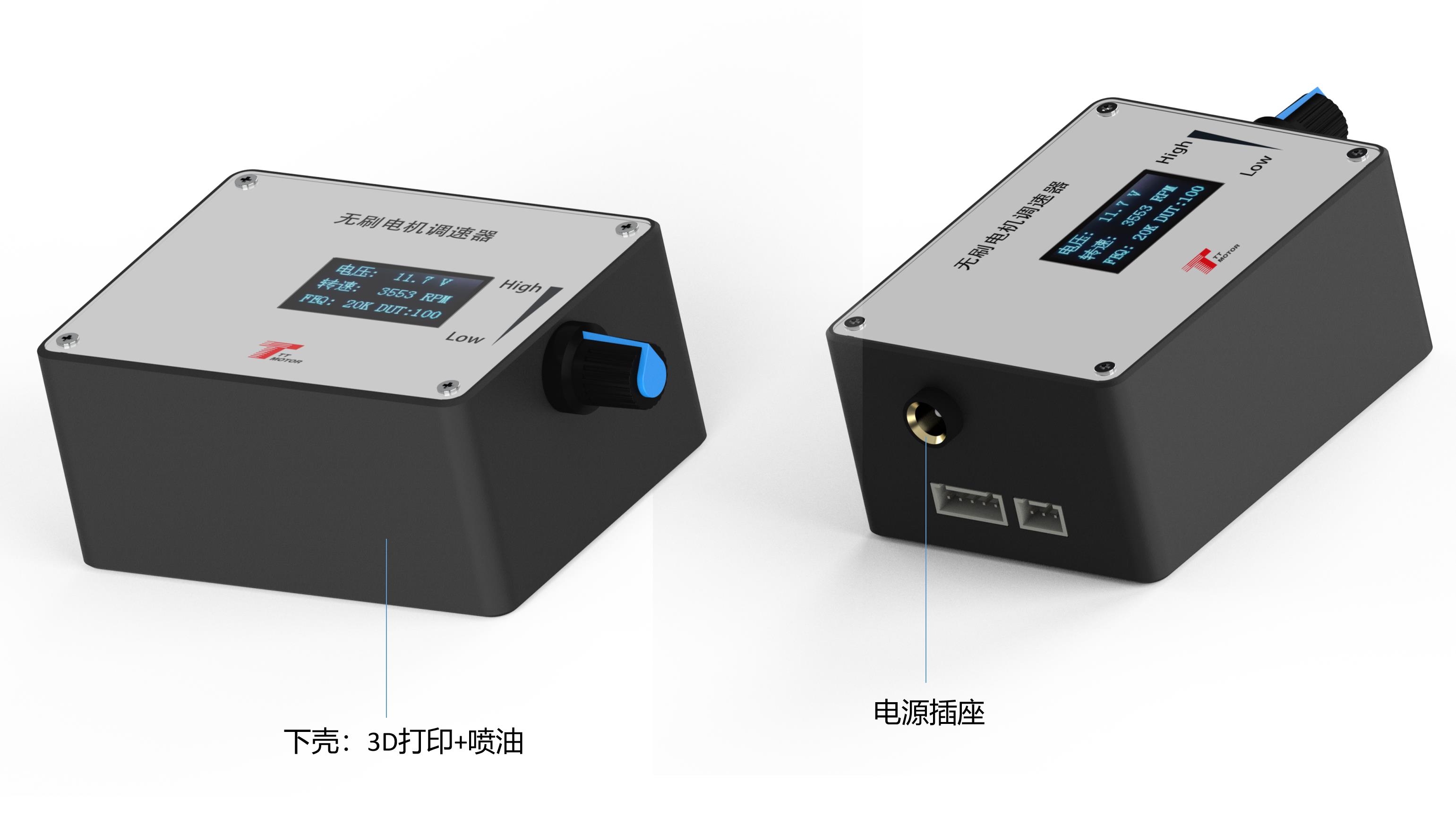

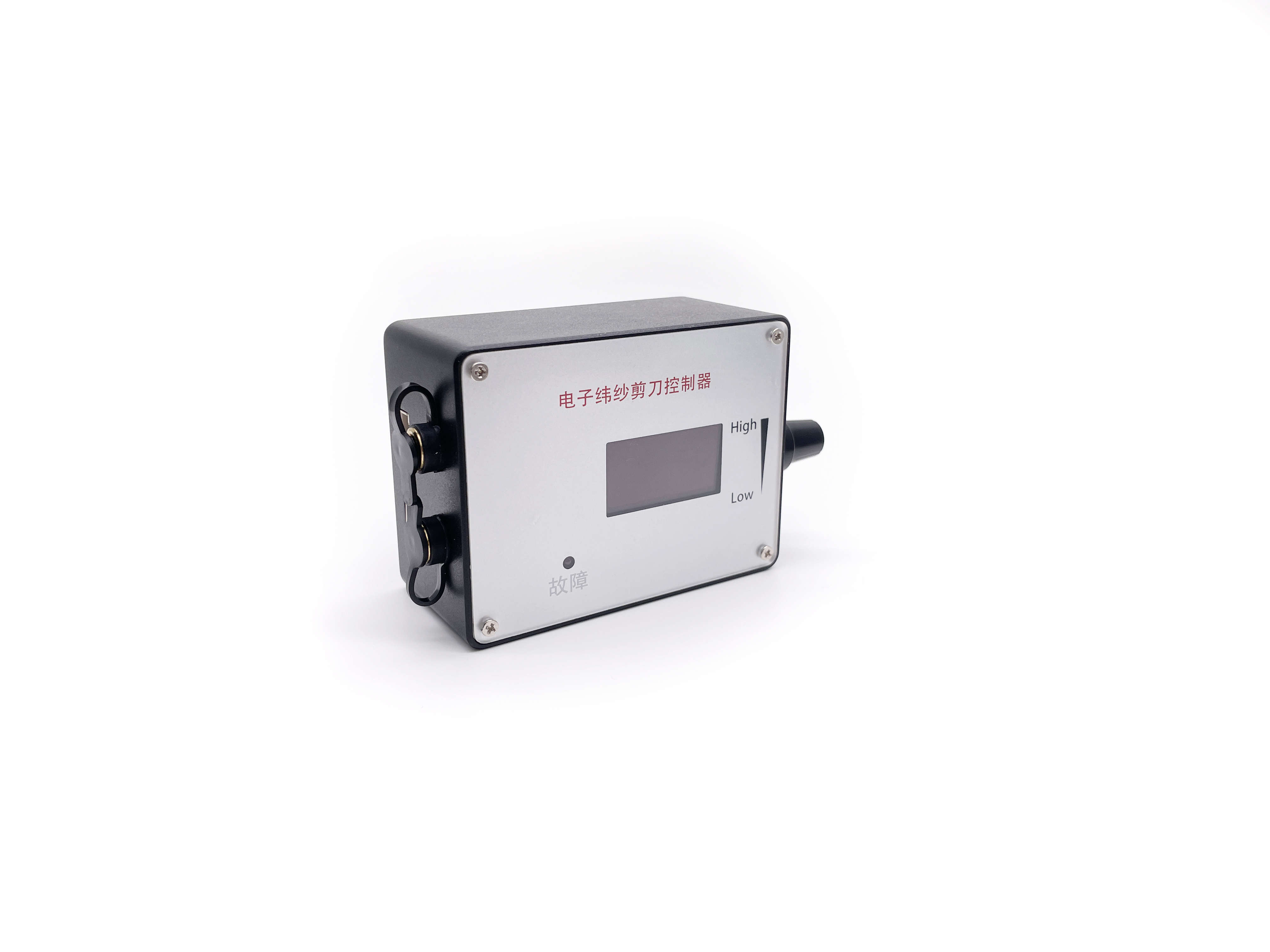

DC BLDC Motor LCD Speed Controller PWM Controller 12V 24V Adjustable PWM Motor Speed Regulator 12V 24V

Product Description

Governor Specifications

1. Electrical Performance Specifications of Governor

Voltage & Current Parameters
  • Voltage Range: DC5V-28V
  • Rated Current: MAX 2A. To control the motor with greater current, connect the motor power line directly to the power supply, bypassing the governor.
Signal & Temperature Limits
  • PWM Output Frequency: 0 ~ 100KHz
  • Analog Voltage Output: 0 - 5V
  • Working Temperature: -10℃ to 70℃
  • Storage Temperature: -30℃ to 125℃

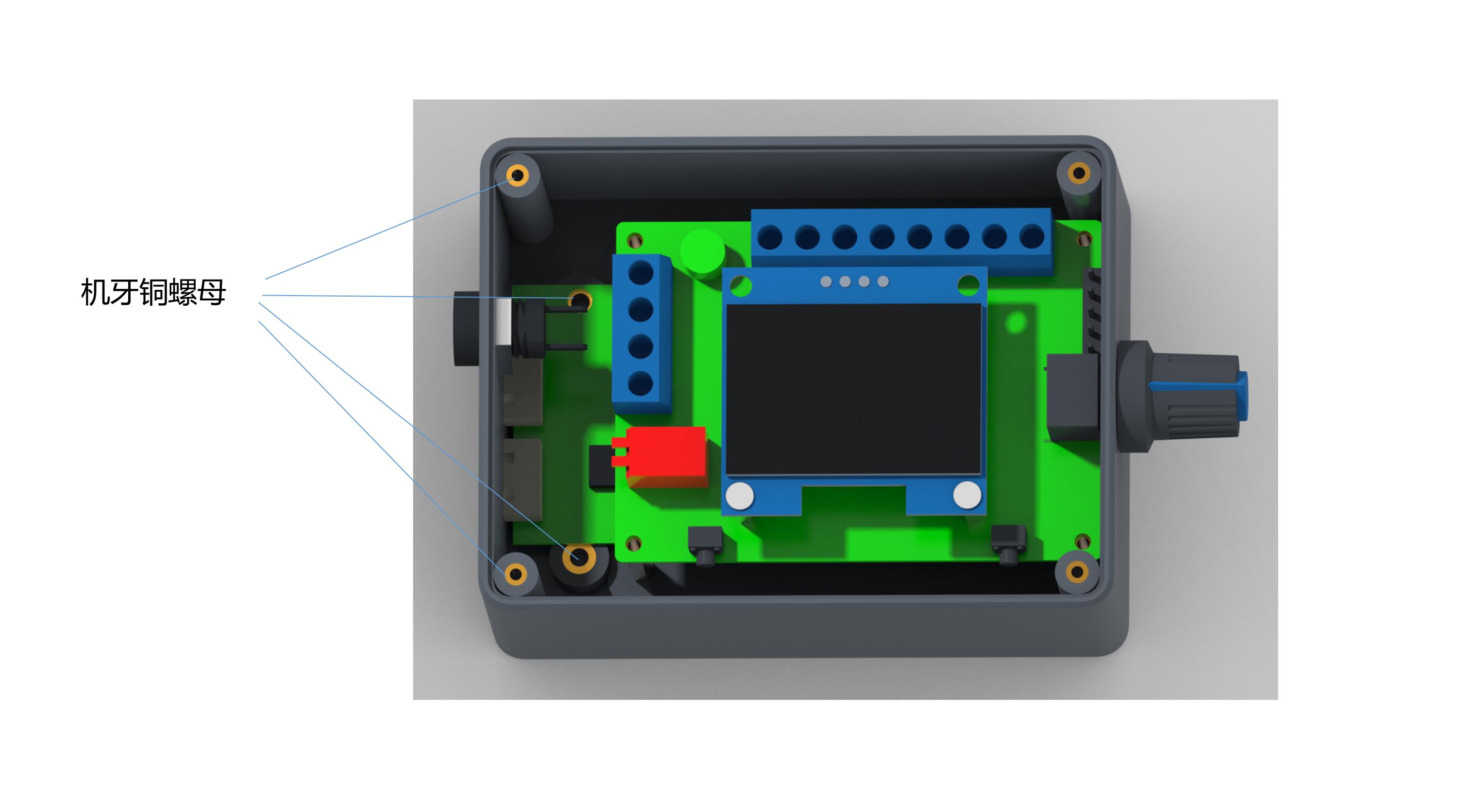

  • Driver Board Size: Length 60mm X Width 40mm

2. Governor Wiring & Internal Function Description

Power and Control Lines
  • ① Input Power Positive: Governor & motor power supply positive input.
  • ② Input Power Negative: Governor & motor power input negative.
  • ③ Output Power Positive: Positive output of the motor power supply.
  • ④ Output Power Negative: Negative output of the motor power supply.
  • ⑤ Rotation Control (F/R): High/low level output of positive/negative rotation control (High 5V, Low 0V). Controlled by touch switch 2; default is high level.
  • ⑥ Brake Control (BRA): High/low level output of brake control (High 5V, Low 0V). Controlled by touch switch 1; power-on default is high level.
Analog & Signal Outputs
  • ⑦ Analog Voltage Output (0~5V): Suitable for motors accepting analog voltage speed regulation.
  • ⑧ PWM1 Reverse Output: Suitable for motors accepting PWM speed regulation; speed is inversely proportional to the duty cycle.
  • ⑨ PWM2 Forward Output: Suitable for motors accepting PWM speed regulation; speed is proportional to the duty cycle.
  • ⑥-⑨ Signal Modulation: Output signal changes of these interfaces are adjusted via the potentiometer.
  • ⑩ Feedback Signal Input: Motor feedback signal input.
  • Note: FG/FG*3 jumper cap addition defines single or 3x times feedback multiplier. The same mechanism applies to CW/CCW.

3. Governor Parameter Settings

  • Frequency Setting: Press and hold touch switch 1 before powering on, then power the governor board. When the screen displays "FEQ:20K", release the button. Use touch switch 1 to decrease and touch switch 2 to increase the value. Factory default: 20KHz.
  • Poles Number Setting: Hold down both touch switch 1 and 2 before powering on. Power the board, wait for "number of poles: 1 polarity" to appear, then release. Use touch switch 1 to decrease and touch switch 2 to increase the pole count. Factory default: 1 pole.
  • Feedback Setting: The FG/FG*3 pin sets the feedback multiple. Add the jumper cap for 3x FG, remove it for single FG feedback.
  • Direction Setting: The CW/CCW pin sets the initial motor direction. Add the skip cap for CCW, remove it for CW.

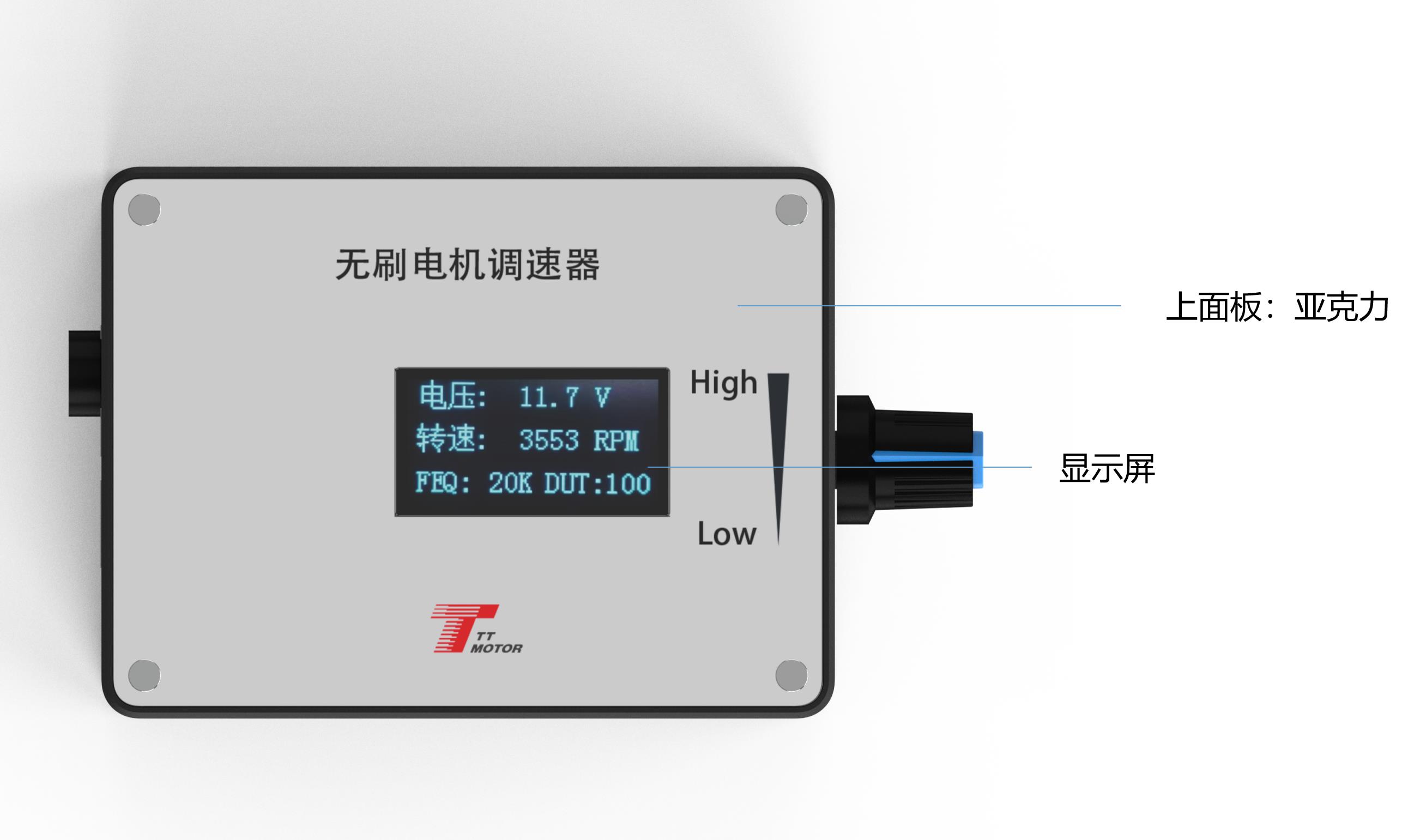

  • Main Display: The active screen displays the input voltage, speed, frequency, and duty cycle. Speed requires correct configuration of FG/FG*3 and poles.

4. Governor Precautions

Important Operation Instructions
  • The positive and negative power supplies must be connected accurately according to the manual instructions. Reverse connection will burn the governor.
  • The governor must be used with motors that match the control interface specifications specified above.
  • Ports ⑤ through ⑨ must never exceed an input voltage of 5V.

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range supported by this governor?
A: The governor supports an input voltage range of DC5V to DC28V.
Q2: How do I handle motors requiring a current greater than the 2A rated limit?
A: For motors requiring higher current, connect the motor power line directly to the external power supply instead of routing it through the governor.
Q3: What are the consequences of reversing the input power polarity?
A: The power supply must be connected correctly. Reversing the positive and negative terminals will damage and burn out the governor.
Q4: How can I change the PWM frequency and default settings?
A: Hold touch switch 1 before powering on the board. Once the display shows "FEQ:20K", release the button and use switch 1 to decrease or switch 2 to increase the frequency.
Q5: How do I configure the motor's speed feedback signal?
A: Set the feedback multiplier via the FG/FG*3 pin. Inserting a jumper cap sets the multiplier to 3x FG, while leaving the jumper cap off configures it for a single FG.
