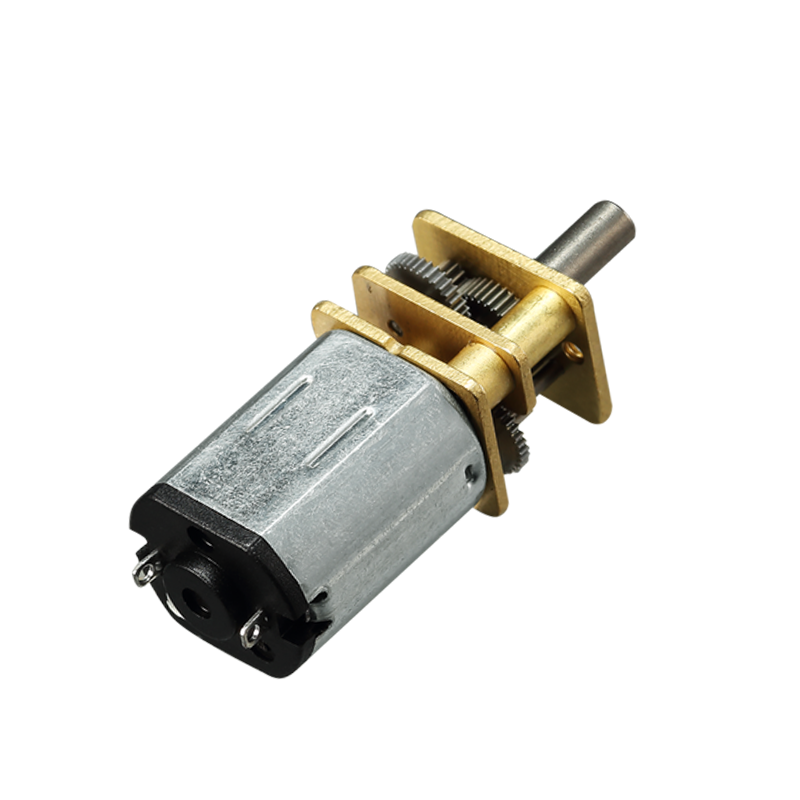

RACB Motor
RACB Motor
| Model | Rated Voltage | Rated Speed | No-load Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|---|
| TFF-N20VA-13110 | 2.4V DC | 12000 r/min | 14800 r/min | 2.5 g.cm | 13 g.cm |
| TFF-N20VA-09220 | 5V DC | 12000 r/min | 14800 r/min | 2.5 g.cm | 13 g.cm |
| TFF-N20VA-05430 | 12V DC | 12500 r/min | 16000 r/min | 3.0 g.cm | 13 g.cm |
| Reduction Ratio | 10 | 30 | 50 | 100 | 150 | 210 | 298 | 380 |
|---|---|---|---|---|---|---|---|---|
| No-load Speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 50 | 38 |
| Rated Torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.45 | 0.5 |
Our micro gear motors are versatile and ideal for various high-precision industries:
As a national high-tech enterprise, we maintain strict quality control standards. Our production is certified by:
Specializing in micro motors, gear motors, and precision parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances. We export 98% of our output worldwide, focusing on dependability and long-lasting quality.
Standard Shipping Times:
