GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

1 / 5

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

Send Inquiry

Product Description

GMP36-555PM-EN Electric Motor: DC 24V Planetary Gear Motor with Encoder

Product Application

This high-performance planetary gear motor is designed for various automated systems, including automatic door operators, energy-saving bath systems, electrical controlled valves, and oxygen machines. It is also an ideal choice for 12V DC gear motor applications, optical equipment, cordless power tools, and professional lighting setups.

Technical Specifications

Model	Rated Voltage	Rated Speed	Output Power	Rated Torque	Stall Torque
TTRS-555PM-1233	12VDC	2800 r/min	5.7W	200 g.cm	1150 g.cm
TTRS-555PM-1260	12VDC	5250 r/min	16W	290 g.cm	2200 g.cm
TTRS-555PM-2440	24VDC	3150 r/min	6.4W	200 g.cm	1000 g.cm

Main Features

Planetary Reducer: 36mm planetary reducer paired with 3530/5 series carbon brush motors or TEC3650 & 3640 brushless motors.
Compact & Powerful: Small size DC gear motor offering low speed with exceptionally high torque (up to 3.0Nm).
Reliability: 36mm gear motor design ensures long-term reliability for industrial applications.
Low Noise: Engineered for applications requiring small diameters, low operational noise, and high torque output.
Encoder Integration: Motors can be matched with 11ppr encoders for precise control.
Wide Reduction Ratios: Available in ratios from 4 to 720 (including 14, 19, 51, 71, 100, 139, 189, 264, 369, 516).

Performance Data by Reduction Ratio

Model Series: GMP36-555PM-1233

Reduction ratio	4	19	51	100	139	189	264	369	516
Rated speed (rpm)	700	150	55	28	20	15	11	8	5.5
Rated torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30

Model Series: GMP36-555PM-1260

Reduction ratio	4	19	51	100	139	189	264	369	516
Rated speed (rpm)	1300	275	100	50	38	28	20	15	10.5
Rated torque (kg.cm)	0.9	3.8	9	18	22	30	30	30	30

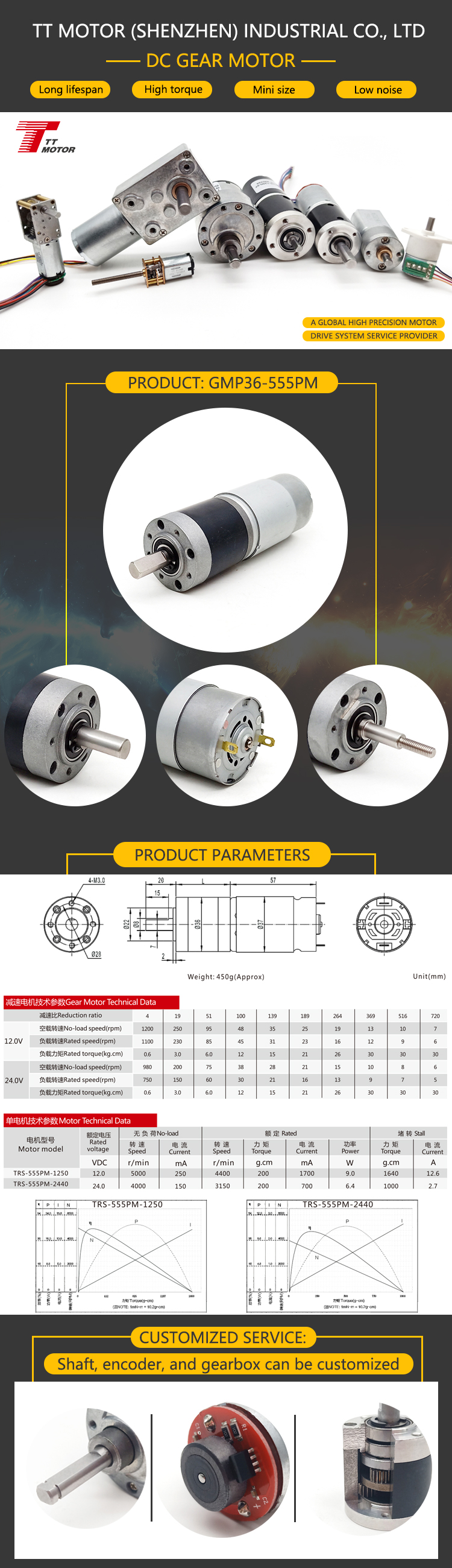

Product Display

Versatile Industry Applications

Category	Typical Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera & Optical	Video Systems	Digital Cameras	Projectors	-
Lawn & Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications & Quality Assurance

Our manufacturing processes are strictly governed by international quality standards, including ISO9001 and SGS. We are recognized as a national high-tech enterprise dedicated to precision engineering.

Our Professional Background

Specializing in micro motors, gear motors, and precision parts since 2000, we provide dependable and long-lasting solutions for entertainment systems, automobiles, home appliances, and industrial tools. With 98% of our output exported globally, we are a trusted pioneer in the international motor market, seeking global partners to deliver high-quality engineering.

Packing & Delivery

Estimated Shipping Times:

DHL: 3-5 working days
UPS/TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea Freight: Depends on destination country

Frequently Asked Questions

Q: How can I place an order for these motors?

A: Simply send us an inquiry. We will provide a quotation, negotiate the technical details, confirm samples, and proceed with the contract and mass production once the deposit is received.

Q: Are sample orders available?

A: Yes, samples are available for testing. Please contact us for details. Sample fees are typically refunded once a formal bulk order is placed.

Q: Which shipping methods do you support?

A: We offer DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping methods can be arranged upon request.

Q: What is the typical lead time for production?

A: Production time generally depends on the order quantity, usually ranging from 15 to 25 working days.

Q: What should I do if my package arrives with missing items?

A: Please contact our support team immediately. We will verify your order against the package contents and resolve any discrepancies.

Q: What payment methods are accepted?

A: We accept T/T and PayPal. Other payment methods may be negotiable. A 30-50% deposit is standard, with the balance due before shipping.
