RACB Motor
RACB Motor
Available Reduction Ratios:
6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

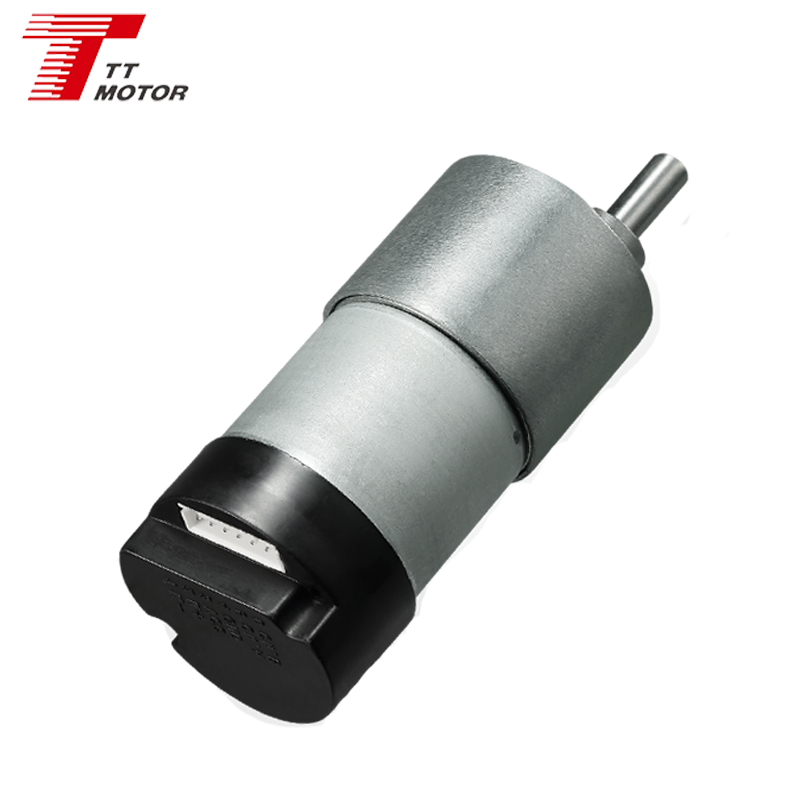

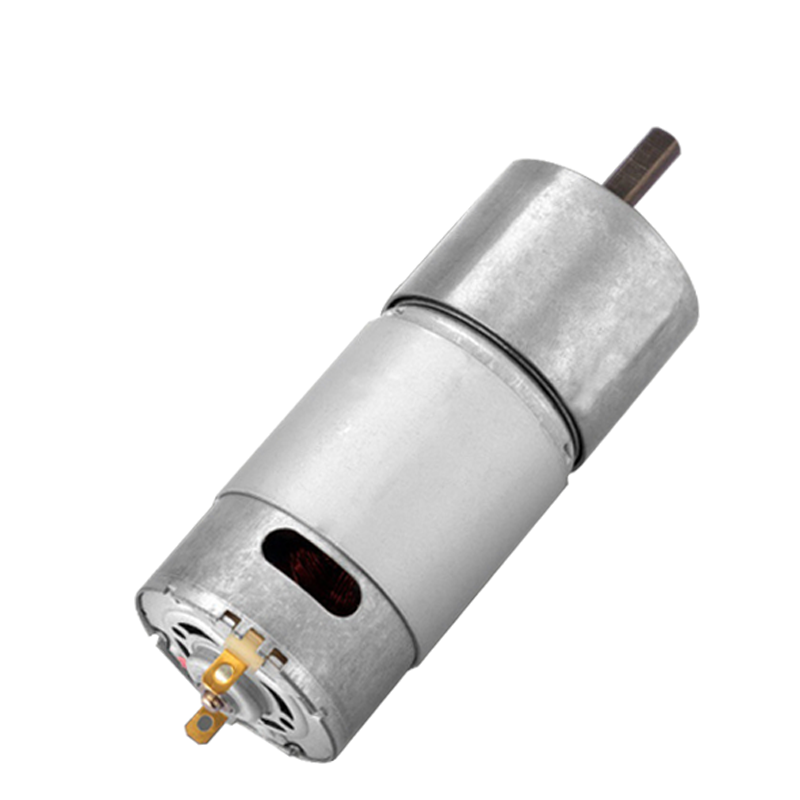

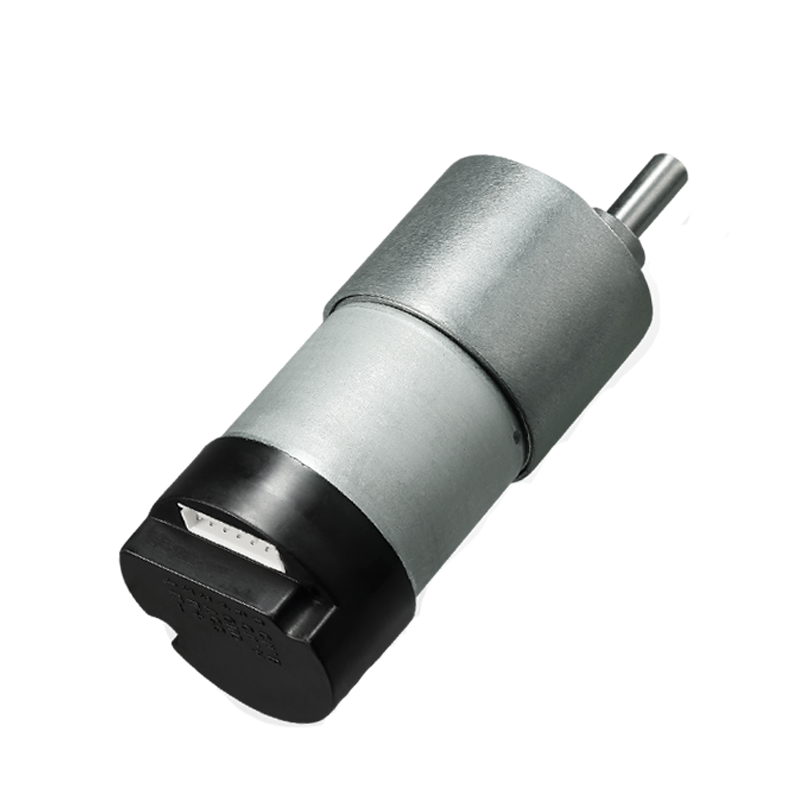

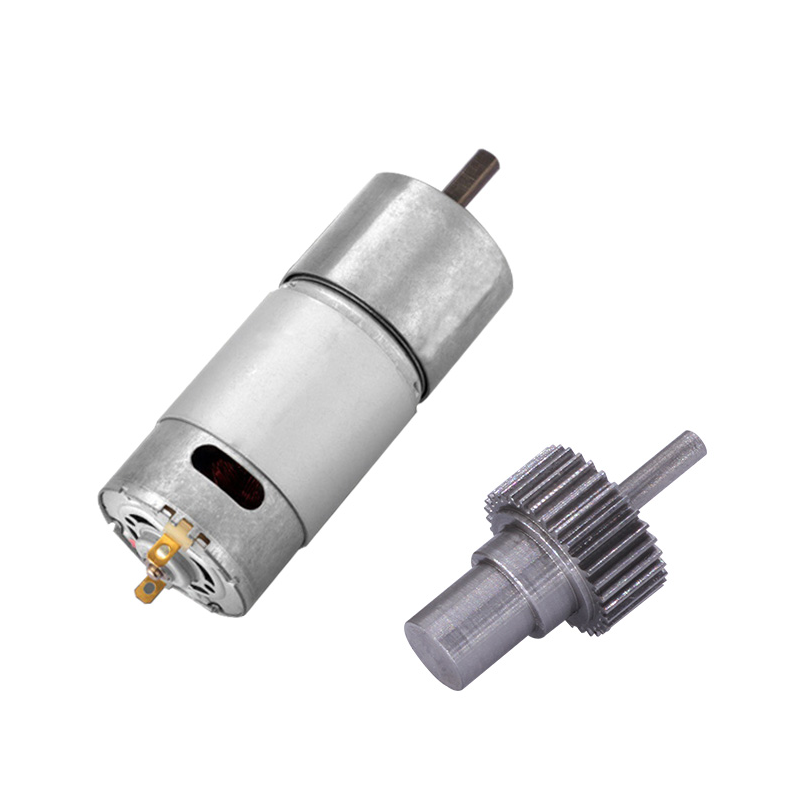

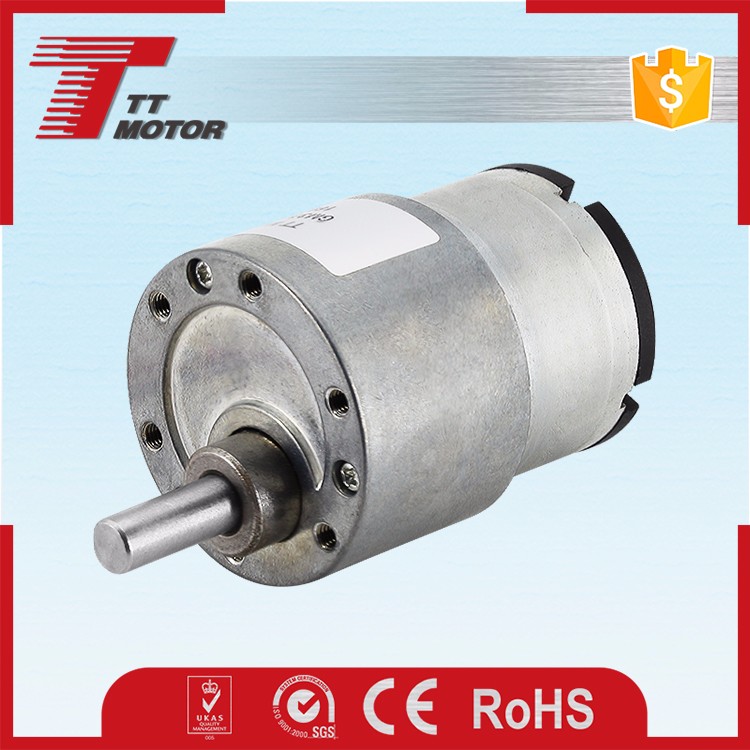

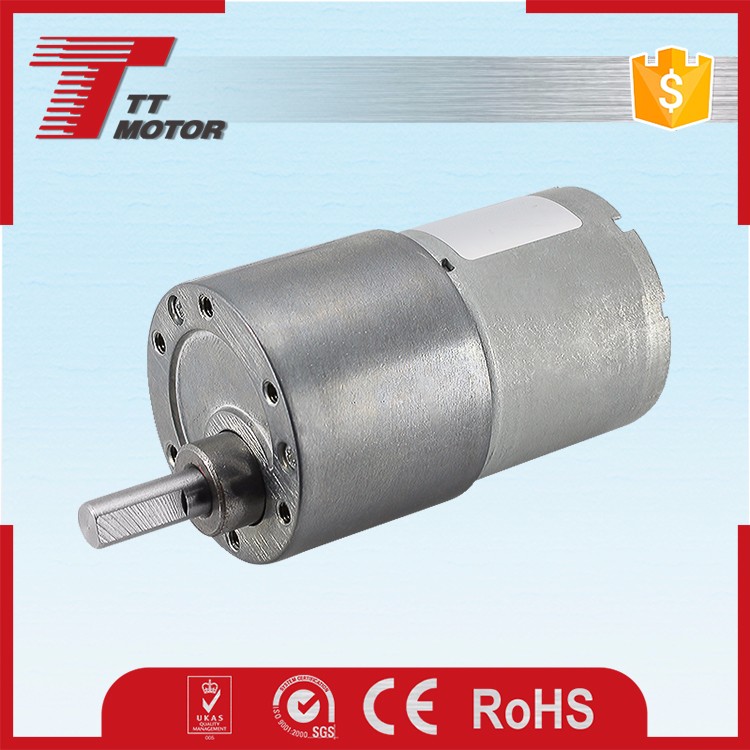

| Model: GM37-555PM Gear Motor | |||
| TRS-555PM-1233 | Rated voltage: 12VDC | Rated speed: 2800r/min | Output power: 5.7W |
| No-load speed: 3300r/min | Rated torque: 200g.cm | Stall torque: 1150g.cm | |
| No-load current: 200mA | Rated current: 1000mA | Stall current: 5.5A | |
| GM37-555PM-1233-xxx | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 |

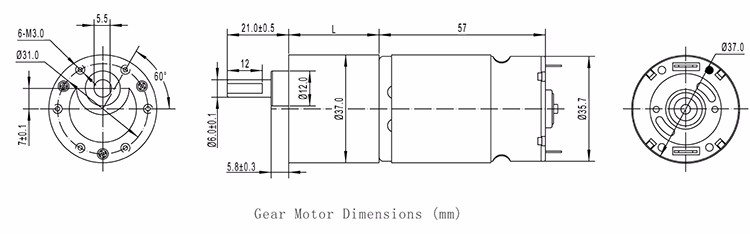

| Length mm | 19 | 19 | 21.5 | 21.5 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load speed rpm | 500 | 300 | 160 | 105 | 57 | 36 | 20 | 12 | 6.5 |
| Rated torque kg.cm | 1.0 | 1.6 | 2.7 | 4.2 | 6.7 | 10 | 10 | 10 | 10 |
| GM37-555PM-1260-xxx | 6 | 10 | 19 | 30 | 56 | 90 | 169 | 270 | 506 |
| No-load speed rpm | 900 | 550 | 300 | 190 | 100 | 65 | 35 | 22 | 12 |
| Rated torque kg.cm | 1.4 | 2.3 | 3.8 | 6.1 | 10 | 10 | 10 | 10 | 10 |
✔ Automatic door operators
✔ Automatic energy saving bath
✔ Electrical controlled valves
✔ Oxygen machines & Optical equipment
✔ Automat cordless power tools & Lighting
Packaging: Single carton packing, 500 pieces per box.
Shipping Options:

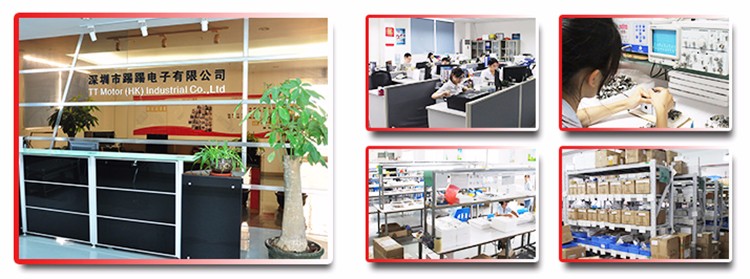

Specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances. We export 98% of our output worldwide, maintaining a reputation for dependability and quality.
