High Torque GM25-370CA 6V 12V DC Gear Motor for TV Satellite Antenna Applications Global B2B Supply

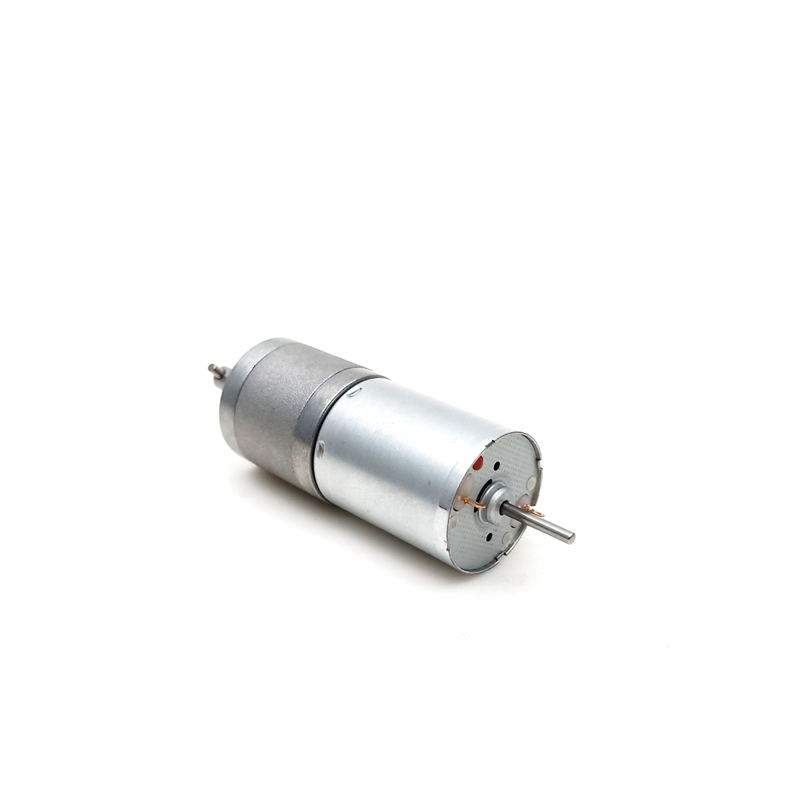

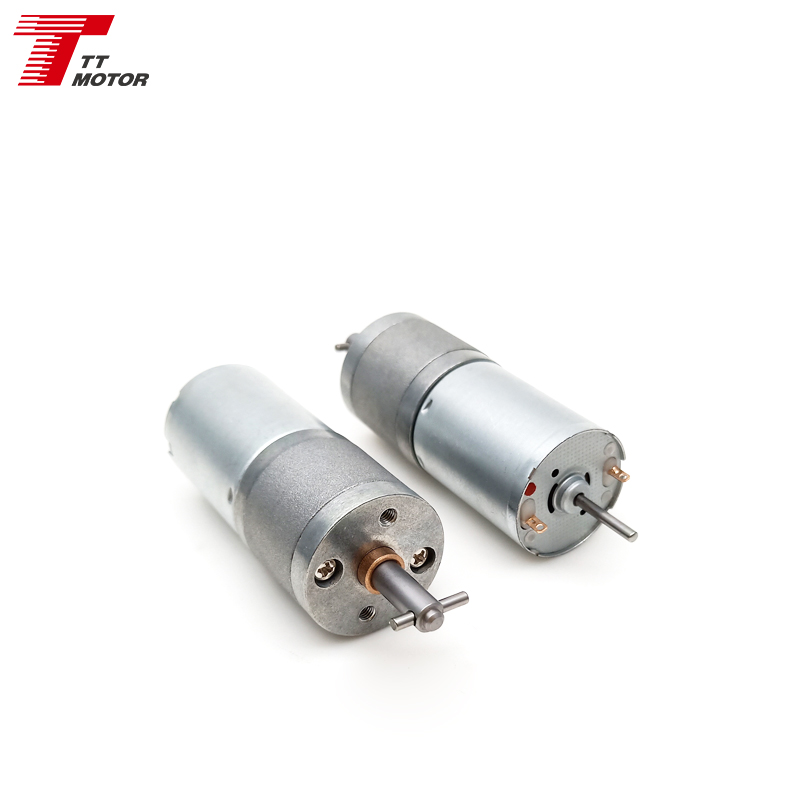

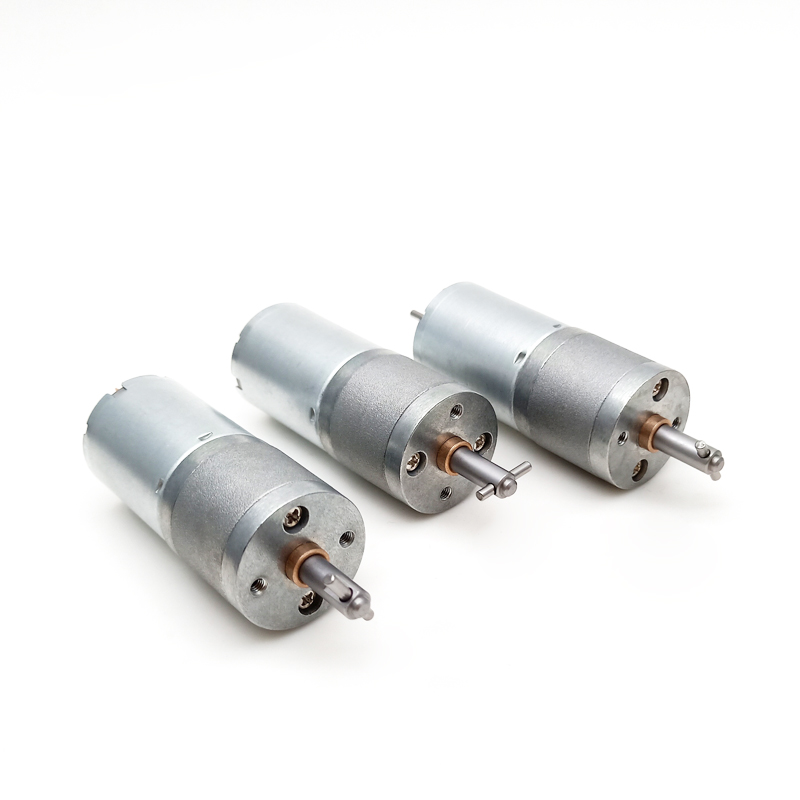

GM25-370CA 6V 12V DC Electric Gear Motor for TV Broadcast Satellite Antenna

Main Features

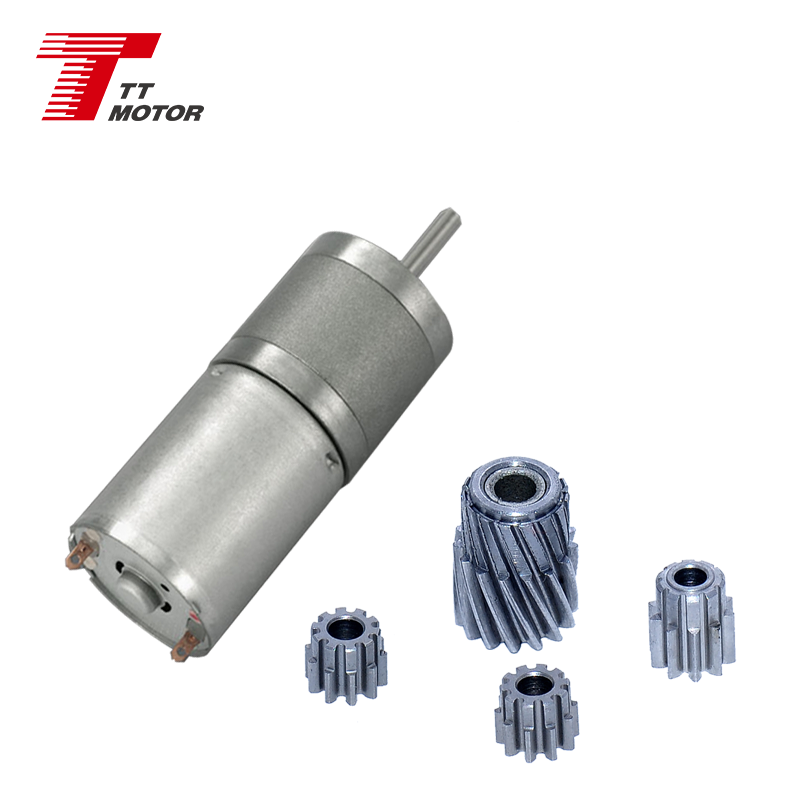

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size DC gear motor with low speed and big torque
25mm gear motor provides 0.5Nm torque and high reliability
Suitable for small diameter, low noise, and big torque applications

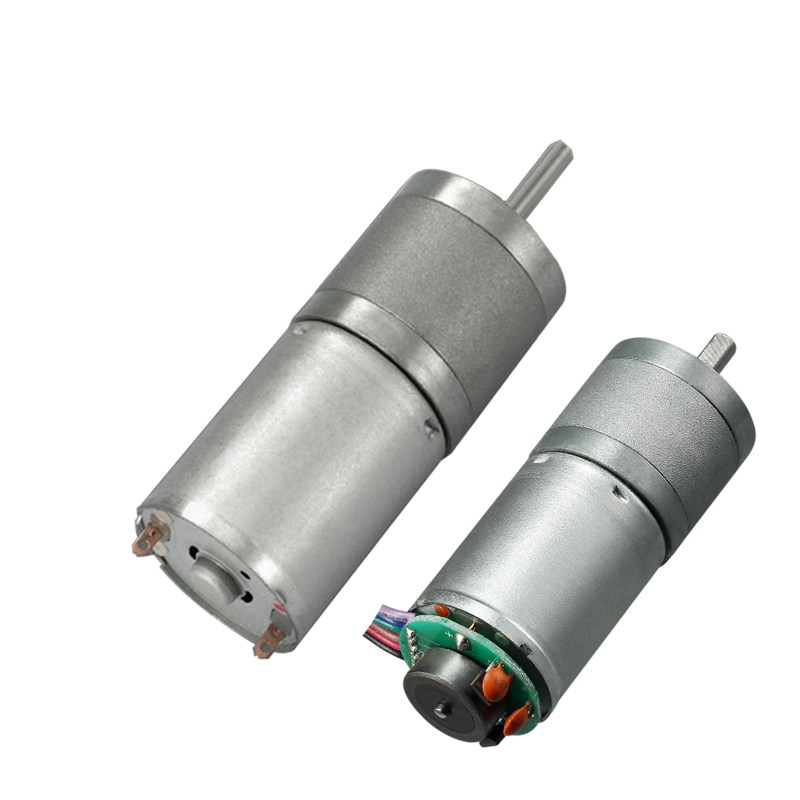

DC gear motors can match encoder, 11ppr
Reduction ratio options: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

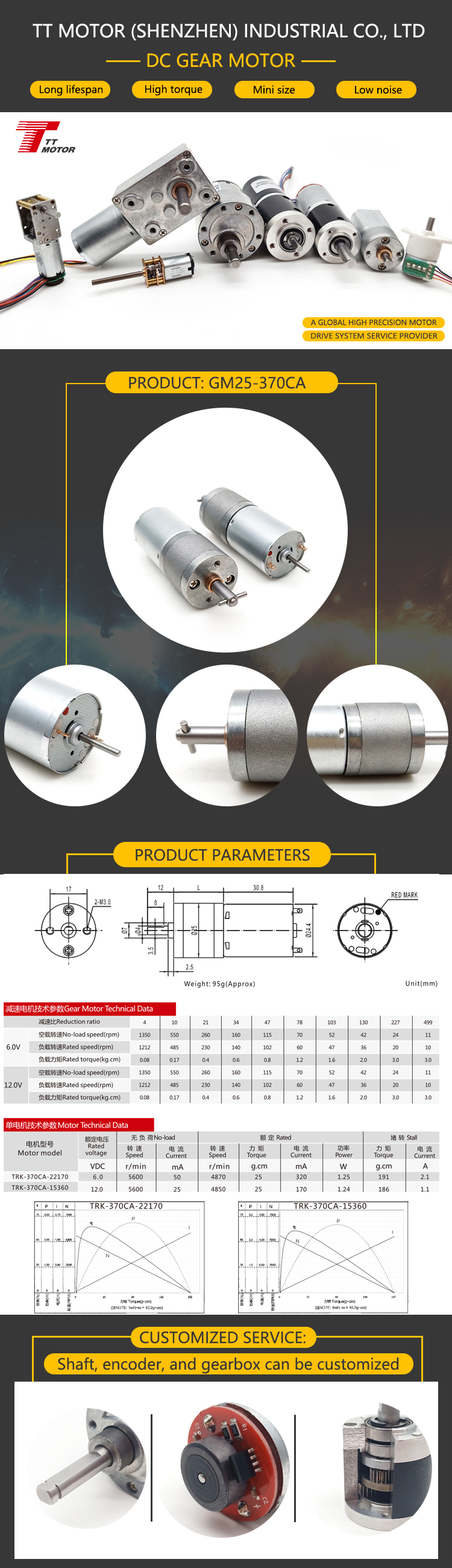

Model Motor Specs (GM25-370CA)

Model Parameter	Rated Voltage	No-Load Speed	No-Load Current	Rated Speed	Rated Torque	Rated Current	Output Power	Stall Torque	Stall Current
TRK-370CA-22170	6VDC	5600 r/min	50mA	4800 r/min	24 g.cm	300mA	1.18W	186 g.cm	2.1A
TRK-370CA-15360	12VDC	5600 r/min	25mA	4800 r/min	24 g.cm	160mA	1.18W	186 g.cm	1.06A
TRK-370CA-12560	12VDC	3700 r/min	20mA	3000 r/min	20 g.cm	90mA	0.62W	125 g.cm	0.6A

Gearbox Ratio Specs (GM25-370CA-22170-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Gearbox Ratio Specs (GM25-370CA-15360-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Gearbox Ratio Specs (GM25-370CA-12560-xxx)

Reduction ratio	4	10	21	34	47	78	103	130	478
Length (mm)	17	19	19	21	21	23	23	25	27
No-load speed (rpm)	850	340	165	100	75	48	34	27	7.5
Rated speed (rpm)	750	300	145	86	64	38	29	23	6.3
Rated torque (kg.cm)	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. tolerance torque (kg.cm)	0.3	0.75	1.5	2.6	3.5	10	10	10	10

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Profile & Factory

We specialize in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many others. Our products are dependable and long-lasting, backed by years of experience. We export 98% of our output worldwide.

By leveraging a solid reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners, including end-users, distributors, and agents.

Major Partners

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packaging is used to ensure safe transportation.

Estimated Shipping Times

DHL 3-5 Days

UPS 5-7 Days

TNT 5-7 Days

FedEx 7-9 Days

EMS 12-15 Days

Post / Sea Varies

Customer Feedback

"Excellent quality, better price, good service, and on-time delivery."

Frequently Asked Questions

How to order?

Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance payment/delivery → Further cooperation.

How about sample orders?

Samples are available for verification. Once the sample fee is charged, please be assured that it will be refunded upon placing a formal order.

Which shipping options are available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping are available. Other shipping options can also be arranged if required.

How long is the production and shipping time?

Delivery time depends on the quantity ordered. Typically, mass production takes 15 to 25 working days.

What should I do if items are missing from the package?

Please contact the support team immediately, and we will verify your order details with the packaged contents to resolve the issue promptly.

How to confirm payment?

We accept payments via T/T, PayPal, and other mutually agreed methods. A 30-50% deposit option is available, with the remaining balance due before shipment.
